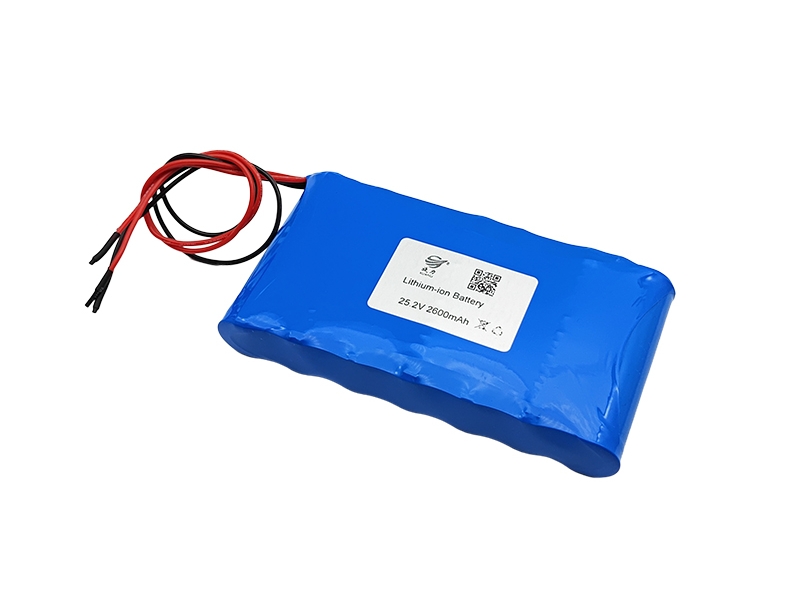

25.2V cylindrical lithium battery product model: XL 25.2V 2600mAh

Technical parameters of 25.2V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)

Single battery model: 18650

· Single cell voltage: 3.6V

The nominal voltage of the battery pack after assembly: 25.2V

· Single battery capacity: 2.6Ah

· Battery combination method: 7 series and 1 parallel

The voltage range of the combined battery is 17.5v-29.4v

· Battery capacity after combination: 2.6Ah

· Battery pack power: 65.52Wh

· Battery pack size: 20*130*71mm (±1mm)

· Maximum discharge current: <5A

· Instantaneous discharge current: 8-15A

· Maximum charging current: 0.2-0.5c

· Charge and discharge cycles: > 500 times

· Main chips: (Seiko, TI

25.2V cylindrical lithium battery

· Comply with relevant national standards and requirements for batteries

All battery products are calibrated and tested before leaving the factory and can be used directly and normally.
